AK47 Tool Kit

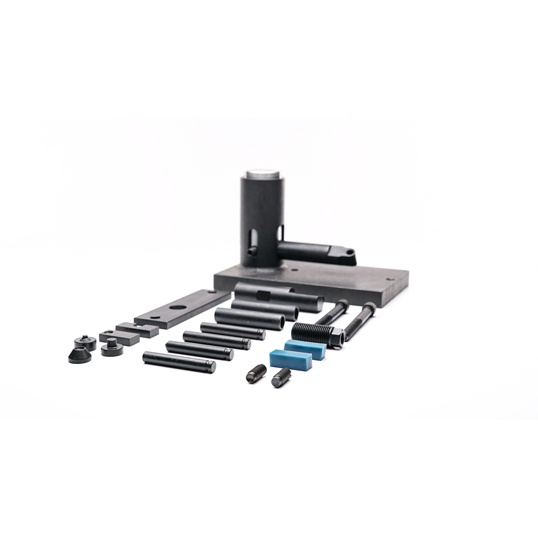

AKM tool kit includes barrel press kit, rivet tool, trigger guard rivet tool, and trunnion hole drilling fixture. AK Builder MFG. Requires locally sourced 1” ram 12 ton press to use.
Note: your jurisdiction may require you to be a licensed FFL or licensed gunsmith to purchase this product.
add to cart
AKM tool kit includes barrel press kit, rivet tool, trigger guard rivet tool, and trunnion hole drilling fixture. AK Builder MFG. Requires 1” ram 12 ton press to use.

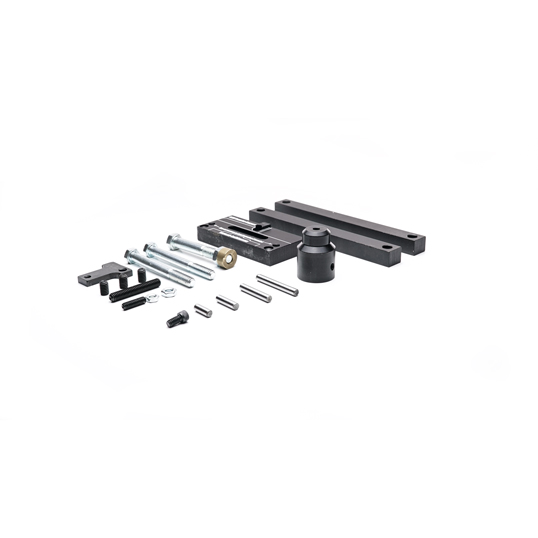

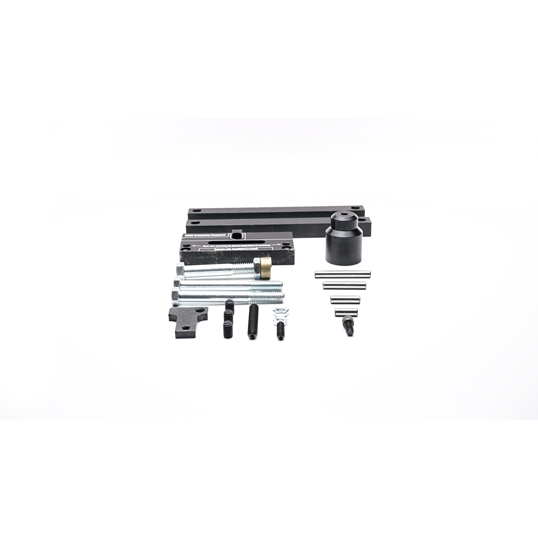

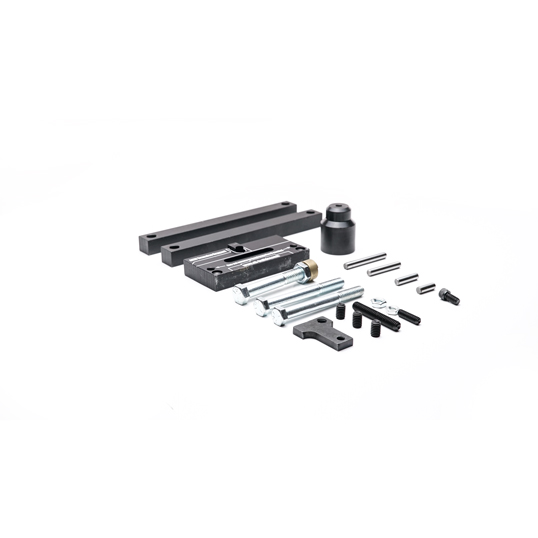

Barrel Press Kit
Safely removes and installs the barrel pins and barrel with the use of a standard shop press. Features a captive system that uses a hardened-pin to reduce the risk of flying projectiles. Also removes the barrel with the included brass block and  trunnion blocks.
For the installation of front and rear trunnion rivets and center supports on an 8- percent AKM receiver. Ram and ram arm are made from 4140 alloy steel and heat treated. Allows users to properly instal swell and square neck rivets, will rivet fixed stock, under-folder, under folder trunnions and center support. Will not install trigger guard rivets, instead, use the included trigger guard riveting jig.

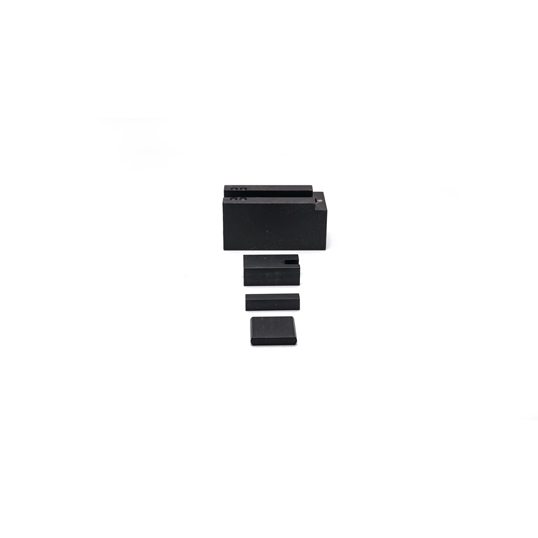

Trigger Guard Riveting Jig
Installs the trigger guard on your 80 percent AKM receiver, safely presses the five trigger guard rivets with heat treated steel block. Rear supports included to aid in installation processes.

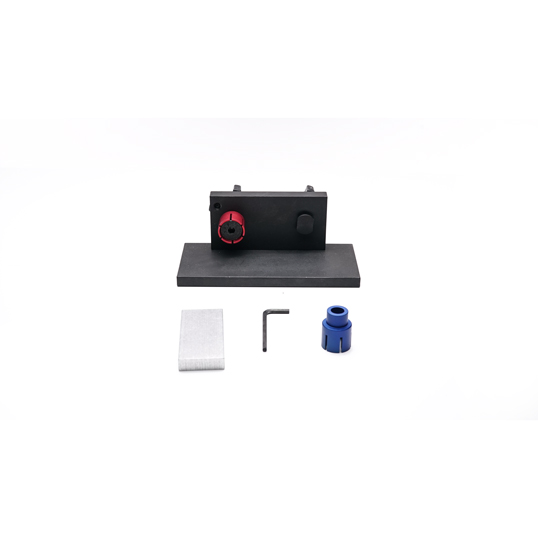

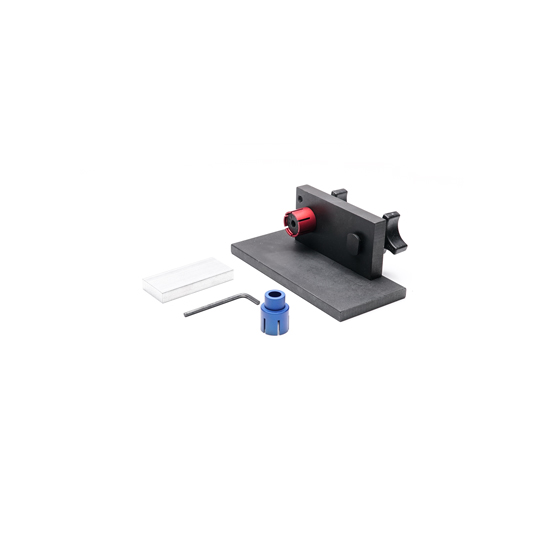

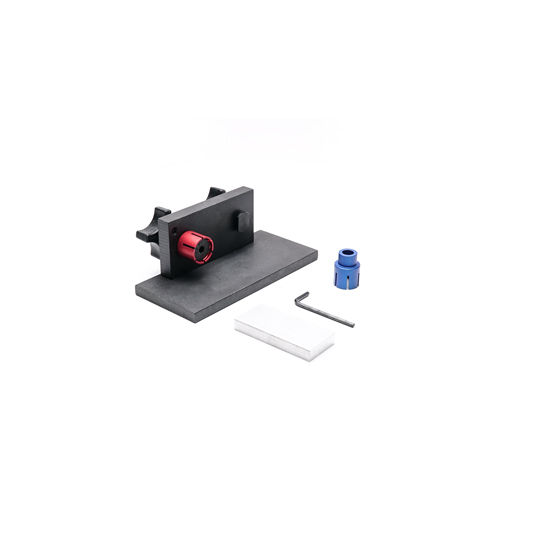

Trunnion Rivet Hole Drilling Fixture
Guides the drilling of the front and rear trunnion holes in your 80 percent 7.62/5.45 AKM receiver, allowing for their installation. The included red mandrel will complete 7.62 trunnion holes and the additional blue mandrel will complete the 5.45 trunnion holes.
